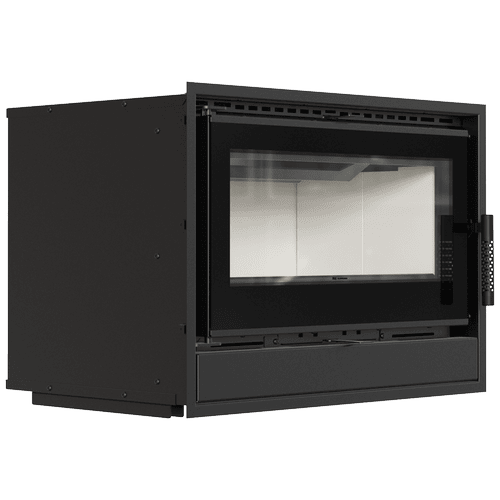

Sku KASETA/ALTA/70/BE
Specification
Nominal power (kW) 8
Thermal Efficiency (%) 84
Weight (kg) 108
Technical data
| Nominal power (kW) | 8 |
|---|---|
| Thermal Efficiency (%) | 84 |
| Flue gas temperature (°C) | 164 |
| Optimal log length (mm) | 350 |
| Max billet length (cm) | 30 |
| diameter of the flue gas outlet | 160 |
| Energy class | A+ |
|---|---|
| EEI | 110 |
| Seasonal Energy Efficiency (%) | 74 |
| Heat output for space heating (kW) | 8 |
| CO emission (at 13% O2) ≤ given in % | 0.087 |
| CO emission (mg/m3) | 1085 |
| Pollen emission (mg/m3) | 14 |
| NOx emission (mg/m3) | 146 |
| OGC emission (mg/m3) | 59 |
| Flue gas mass flow (g/s) | 9.5 |
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
|---|---|
| EAN | 5903751468134 |
| Weight (kg) | 108 |
|---|
Documentation
Product card Download file ECODESIGN PRINTING KASETA_ALTA_70_BE_Ecodesign_EU_2015_1185.pdf Download file ECODESIGN PRINTING KASETA_ALTA_70_Ecodesign_EU_2015_1185.pdf Download file PRINT DOP DOP_ILDNORD_UPOWAZNIONY_PRZEDSTAWICIEL_KASETA_ALTA_70_BE.pdf Download file PRINT DOC DoC_ALTA.pdf Download file Energy card (UE) 2015/1186 Download file
